WH3080 & WH3081 without RCC

icon_pdf.gif  WH3080 operation Manual

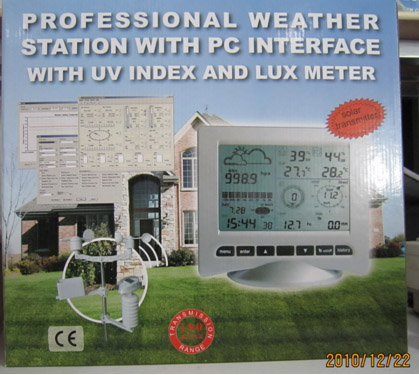

PROFESSIONAL WIRELESS WEATHER STATION WITH SOLAR POWER TRANSMITTER Transmission Range up to 100 Meters (300 ft)

WH3080 WITH RCC, WH3081 WITHOUT RCC



Description:
Big LCD weather station connect to PC, solar panel, UV index, weather forecast, temperature, humidity, wind speed, direction, rain
weather station with solar transmitter and PC interface


Specification:
1. Indoor temperature range: 0°C to +50°C
2. Outdoor temperature range: -40°C to 65°C
3. Temperature accuracy: +/-1.0°C
4. Humidity range: 1%RH-99%
5. Humidity accuracy: +/- 5% under -20°C TO 65°C& 20%-98%
6. Wind speed range:0-50.0 m/s
7. Wind speed accuracy: +/-1 m/s(wind speed <10m/s)
+/-10%(wind speed >10m/s)
8. Rain range: 0 to 9,999mm
9. Rain accuracy: +/-1.5mm
10. Luminance range: 0-400,000 Lux
11. Accuracy:+/-10%
12. Dimension of Display:165 x 148 x 27mm


Features:
1. Solar powered transmitter
2. UV index (0-12)
3. Luminance for local measurement
4. USB port for easy connection to your PC
5. All the weather data from the base station and up to 4080 sets of
weather history data with user adjustable measuring intervals can
be recorded and uploaded to your PC
6. Free PC software for transfer of weather data to PC
7. Rainfall data (inches or mm):1-hour, 24-hour,one week, one month
and total since last reset.
8. Wind chill and Dew point temperature display (°F or °C)
All minimum and maximum values along with time and date of their
recordings
9. Wind speed(mph, m/s, km/h, knots, Beaufort)
10. Wind direction display with LCD compass
11. Weather forecast tendency arrow
12. Weather alarm modes for: temperature, humidity, wind chill, dew point,
rainfall, wind speed, air pressure, storm warning
13. Forecast icons based on changing barometric pressure
14. Barometric pressure (inHg or hPa )
15. Indoor and outdoor temperature display in degrees Fahrenheit or Celsius.
16. Indoor and outdoor humidity display in degrees Fahrenheit or Celsius.
17. RCC: Receive and displays the radio controlled time and date (WWVB, DCF
version available)
18. 12 or 24-hour time display
19. Perpetual calendar
20. Time zone setting
21. Time alarm
22. High light LED backlight
23. Wall hanging or free standing
24. Synchronized instant reception


Packing:
color box & English manual
box dimension: 400 x 370 x 140mm
4pcs/ctn,G.W.:11.20kgs, Meas.: 60 x 45 x 42 cm
